50″(4K)Professional LED Monitor


Model: AZ-LED50Z-4K


1. HD: 3840*2160, 4 times higher than normal monitor.

2. Turn on the screen to automatically detect the resolution of the input signal in the upper right corner of the screen.

3. Clear: delicate and realistic, conveying true colors, showing the true colors.

4. Bright: The quality is improved, only for better presentation.

5. Adopt industrial screen, high brightness, high contrast.

6. High-precision standard regulated power supply, specially designed for industrial equipment, supporting 24 hours × 365 days of uninterrupted work.

7. It adopts full metal casing, strong structure, fireproof, moisture proof and shockproof, especially suitable for equipment that is susceptible to electromagnetic interference.

8. Adopt 10bit image chip processing technology, high pixel progressive scan, fine texture.

9. Support intelligent 3D noise reduction, eliminate afterimage function, dynamic brightness, contrast color optimization technology.

10. Apply the world's leading LED driver solution to accurately restore the front-end signal, with a strong sense of reality.

11. LED has small volume, low energy consumption, zero radiation, stable image, no impact on the eyes, natural health.

12. 5 ms extremely fast response, avoiding the tailing phenomenon of images in high speed operation.

13. Using nanotechnology, the picture is more three-dimensional, transparent.

14. This machine also comes with a splicing function, no external splicer.



       Product type: Professional Monitor Zigoratsecurity

       Product model: ZS-LED50Z-4K

       Screen size: 50"

       Screen type: LED

       Screen ratio: 16:9

Brightness: 900nit

Contrast ratio: 3000:1

Response time: 5 ms

Visual area: 1102*623

Viewing angle: 160°/ 170°

Display color: 16.7M

Clearness: 3840*2160

Control method: panel infrared

Input port: HDMI*1, VGA*2, USB*1, DVI*1, AV*2 , RS232*2

Output port: AV*2,  RS232*1

Audio output: 2 * stereo speakers

Power supply mode: 220V / 0. 7A

Power frequency: 50Hz

Total power: 90W

Case: professional fireproof iron case

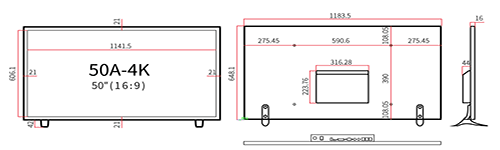

Product outer dimensions: 1183.5*648.1 does not include foot height (foot height 25mm)

Installation method: base, wall mount (with 4 * Hexagonal column screw)

Product weight: 15.5kg

Packing: (1 pcs) 1235*795*190 mm  / 19.5kg

Working environment temperature: most suitable for 20℃

Working environment humidity: 10%-90% RH

Storage temperature: - 20℃~ 60℃
